Bigger Motor

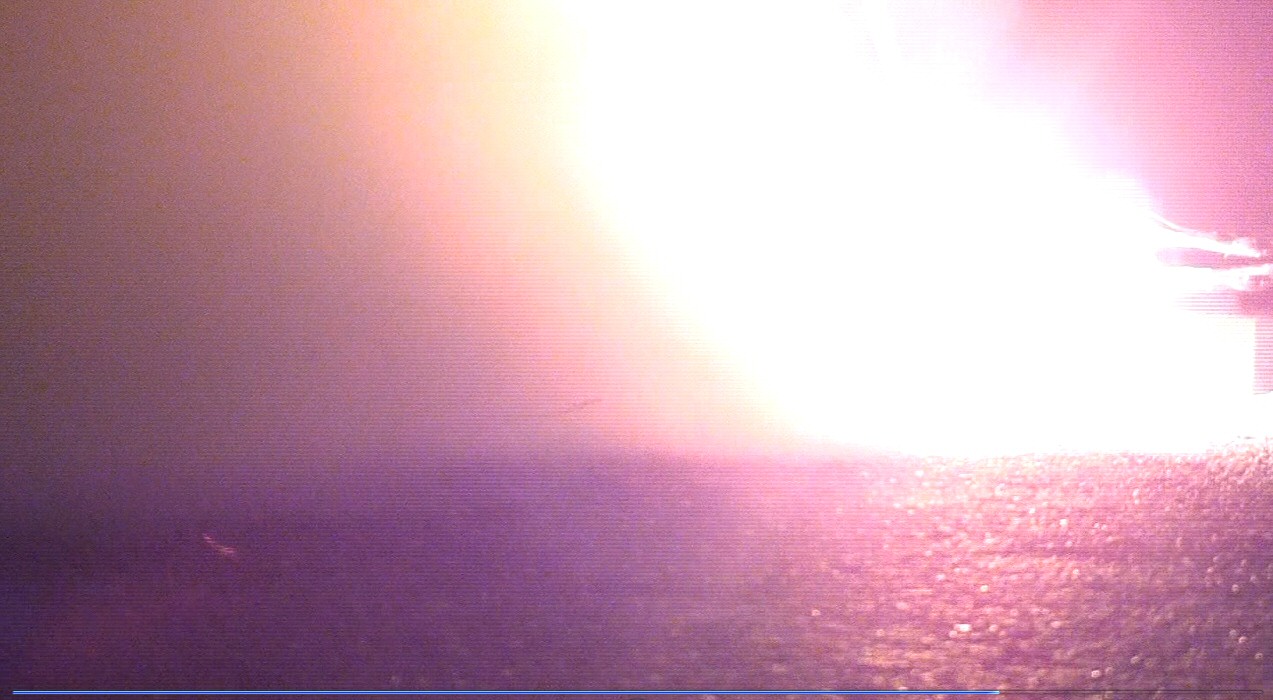

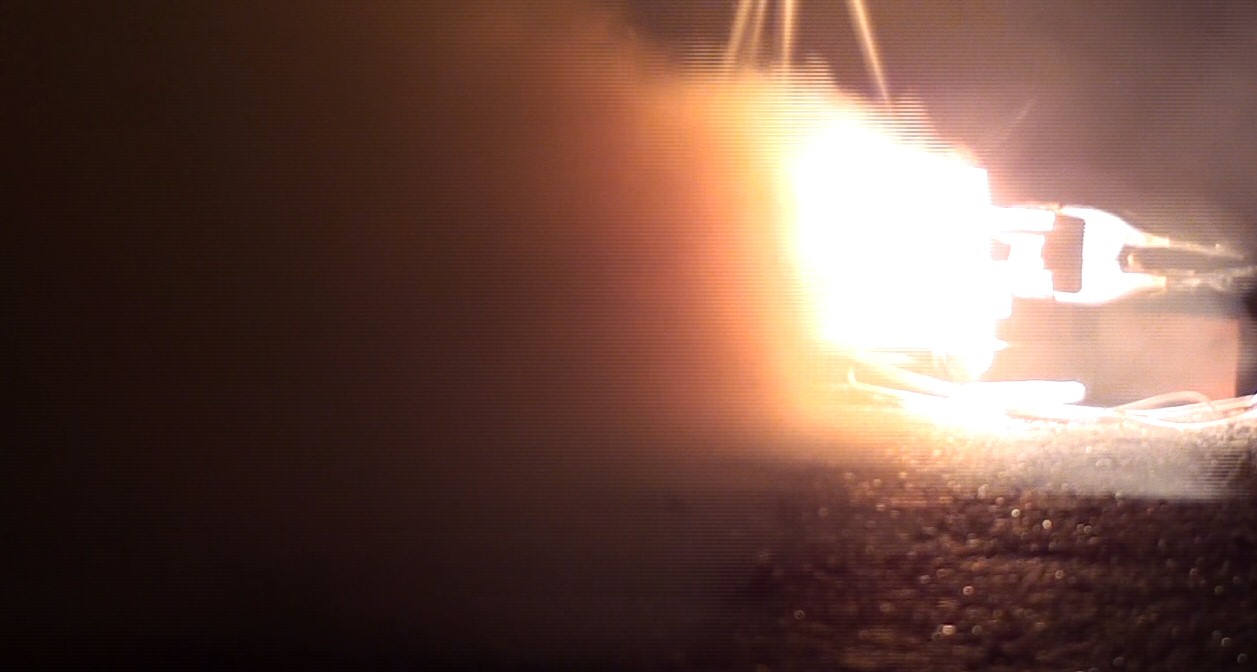

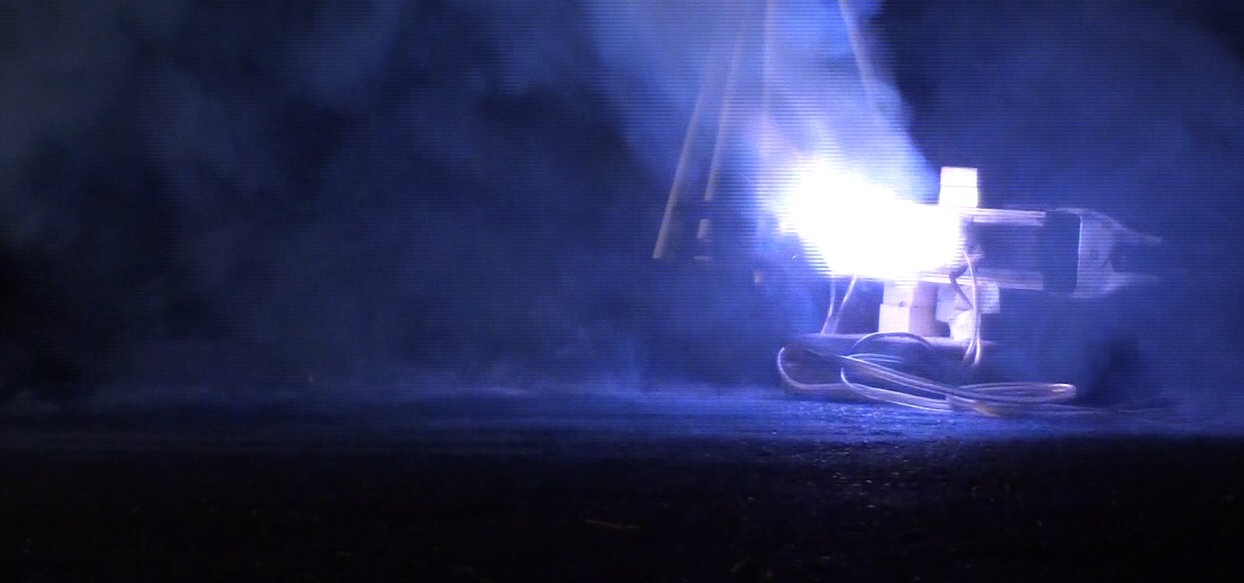

Saturday night we fired MHD generator test number 27. This was the our first with a composite motor, an Econjet F-20.

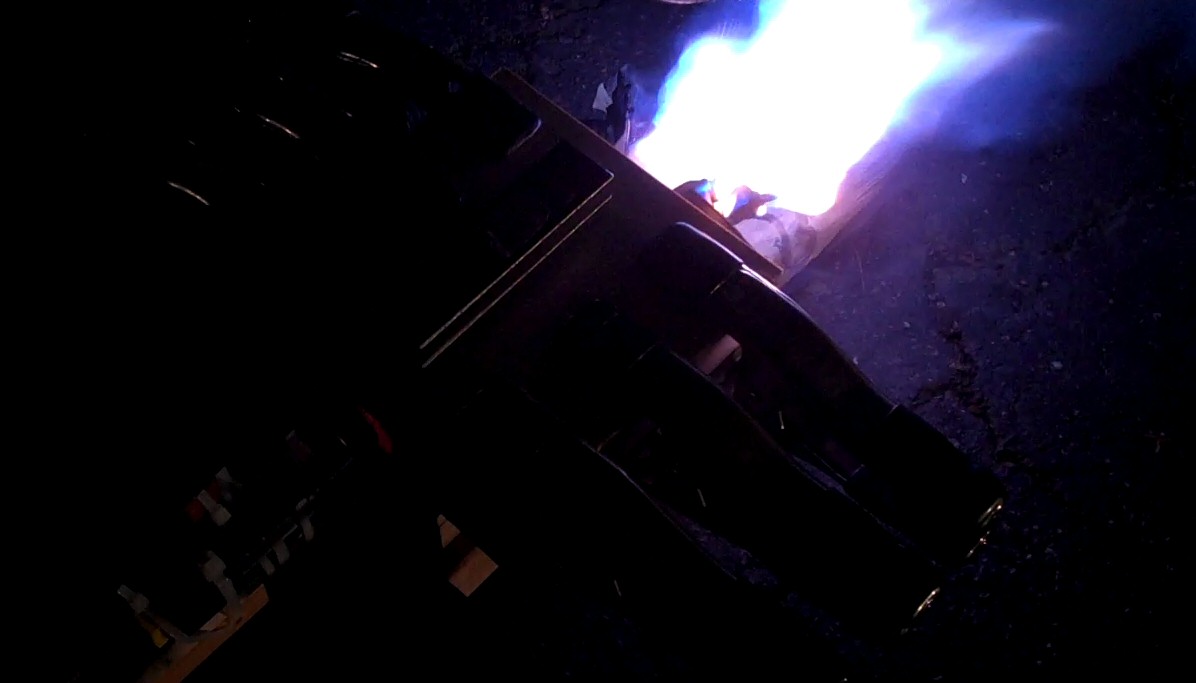

We incorporated the structural lessons from test 26m segmented top plate and forward electrode plate retention wires. The motor was double of thrust from test 26. We were anxious to see if it would all hold together. We need it to be able to handle a “J” class motor to be used on the desktop quad engine.  The structure held find but the cathode was completely eaten through. The composite motor also left a hard non conducting coating on the electrodes.

This entry was posted on Sunday, January 16th, 2011 at 8:44 pm and is filed under Uncategorized. You can follow any responses to this entry through the RSS 2.0 feed. Both comments and pings are currently closed.

2 Responses to “Bigger Motor”

  1. kthwilson says:
    January 16, 2011 at 10:16 pm

    What sort of data loggers do you use to determine current/voltage generated by this beautiful apparatus?

  2. Administrator says:
    January 17, 2011 at 2:28 am

    We’re using a custom built datalogger with the basic stamp II as the processor. It loads it all live to a comma delimited file on a memory stick.
